✨ It’s side project time! ✨

Do you know when you’re having a very hard time focusing on your current project, so you accidentally write a JPEG encoder that maps ASCII text into Huffman codes and DCT coefficients? I’m sure this is a very relatable experience…

Quick link to the live demo: https://jpeg.ffglitch.org/ascii/

Quick link to the github repository: https://github.com/ramiropolla/ascii-jpeg

ASCII meets JPEG

ASCII is all about plain-text clarity.

JPEG is all about image compression.

ascii.jpeg is all about finding a compromise between ASCII and JPEG to create plain-text/image hybrid files.

Example

Before I lose your attention with a lot of technical information, here’s a colorful image generated with ascii.jpeg:

The image above is the visual representation of the ASCII plain-text data of the Lorem Ipsum, interpreted as JPEG, and then scaled up to 512x512 pixels.

The original unscaled JPEG file is the small image below:

This is the hex dump of the contents of the original unscaled JPEG file:

00000000  ff d8 ff db 00 43 00 01  02 02 02 02 02 02 02 02  |.....C..........|
00000010  02 02 02 02 02 02 02 02  02 02 02 02 02 02 02 02  |................|
*
00000040  02 02 02 02 02 02 02 ff  c4 00 93 00 00 00 00 00  |................|
00000050  00 00 00 80 00 00 00 00  00 00 00 00 00 00 00 00  |................|
00000060  00 00 00 00 00 00 00 00  00 00 00 00 00 00 00 00  |................|
*
000000d0  00 00 00 00 00 00 00 00  00 00 00 00 ff c4 00 93  |................|
000000e0  10 00 00 00 00 00 00 00  80 00 00 00 00 00 00 00  |................|
000000f0  00 08 08 08 08 08 08 08  08 08 08 08 08 08 08 08  |................|
00000100  08 08 08 08 08 08 08 08  08 08 08 08 08 08 08 08  |................|
00000110  08 00 08 08 08 08 08 08  08 08 08 08 08 08 08 08  |................|
00000120  08 08 08 08 08 08 08 08  08 08 08 08 08 08 08 08  |................|
*
00000170  08 ff c0 00 11 08 00 20  00 20 03 01 22 00 02 11  |....... . .."...|
00000180  00 03 11 00 ff da 00 0c  03 01 00 02 00 03 00 00  |................|
00000190  3f 00 4c 6f 72 65 6d 20  69 70 73 75 6d 20 64 6f  |?.Lorem ipsum do|
000001a0  6c 6f 72 20 73 69 74 20  61 6d 65 74 2c 20 63 6f  |lor sit amet, co|
000001b0  6e 73 65 63 74 65 74 75  72 20 61 64 69 70 69 73  |nsectetur adipis|
000001c0  63 69 6e 67 20 65 6c 69  74 2c 20 73 65 64 20 64  |cing elit, sed d|
000001d0  6f 20 65 69 75 73 6d 6f  64 20 74 65 6d 70 6f 72  |o eiusmod tempor|
000001e0  20 69 6e 63 69 64 69 64  75 6e 74 20 75 74 20 6c  | incididunt ut l|
000001f0  61 62 6f 72 65 20 65 74  20 64 6f 6c 6f 72 65 20  |abore et dolore |
00000200  6d 61 67 6e 61 20 61 6c  69 71 75 61 2e 20 55 74  |magna aliqua. Ut|
00000210  20 65 6e 69 6d 20 61 64  20 6d 69 6e 69 6d 20 76  | enim ad minim v|
00000220  65 6e 69 61 6d 2c 20 71  75 69 73 20 6e 6f 73 74  |eniam, quis nost|
00000230  72 75 64 20 65 78 65 72  63 69 74 61 74 69 6f 6e  |rud exercitation|
00000240  20 75 6c 6c 61 6d 63 6f  20 6c 61 62 6f 72 69 73  | ullamco laboris|
00000250  20 6e 69 73 69 20 75 74  20 61 6c 69 71 75 69 70  | nisi ut aliquip|
00000260  20 65 78 20 65 61 20 63  6f 6d 6d 6f 64 6f 20 63  | ex ea commodo c|
00000270  6f 6e 73 65 71 75 61 74  2e 20 44 75 69 73 20 61  |onsequat. Duis a|
00000280  75 74 65 20 69 72 75 72  65 20 64 6f 6c 6f 72 20  |ute irure dolor |
00000290  69 6e 20 72 65 70 72 65  68 65 6e 64 65 72 69 74  |in reprehenderit|
000002a0  20 69 6e 20 76 6f 6c 75  70 74 61 74 65 20 76 65  | in voluptate ve|
000002b0  6c 69 74 20 65 73 73 65  20 63 69 6c 6c 75 6d 20  |lit esse cillum |
000002c0  64 6f 6c 6f 72 65 20 65  75 20 66 75 67 69 61 74  |dolore eu fugiat|
000002d0  20 6e 75 6c 6c 61 20 70  61 72 69 61 74 75 72 2e  | nulla pariatur.|
000002e0  20 45 78 63 65 70 74 65  75 72 20 73 69 6e 74 20  | Excepteur sint |
000002f0  6f 63 63 61 65 63 61 74  20 63 75 70 69 64 61 74  |occaecat cupidat|
00000300  61 74 20 6e 6f 6e 20 70  72 6f 69 64 65 6e 74 2c  |at non proident,|
00000310  20 73 75 6e 74 20 69 6e  20 63 75 6c 70 61 20 71  | sunt in culpa q|
00000320  75 69 20 6f 66 66 69 63  69 61 20 64 65 73 65 72  |ui officia deser|
00000330  75 6e 74 20 6d 6f 6c 6c  69 74 20 61 6e 69 6d 20  |unt mollit anim |
00000340  69 64 20 65 73 74 20 6c  61 62 6f 72 75 6d 2e ff  |id est laborum..|
00000350  d9                                                |.|
00000351

Notice that the file is split into three parts:

• The JPEG headers (first 0x192 bytes)
• Plain-text ASCII data of the Lorem Ipsum
• The JPEG End of Image marker (0xffd9)

But you can’t just stuff ASCII data into any JPEG file. You need some carefully-crafted Huffman tables in the headers of the JPEG file for that, which I’ll get into more details in a while.

JPEG

Very simplistically, a JPEG file is composed of some headers followed by a bunch of Huffman-encoded DCT coefficients.

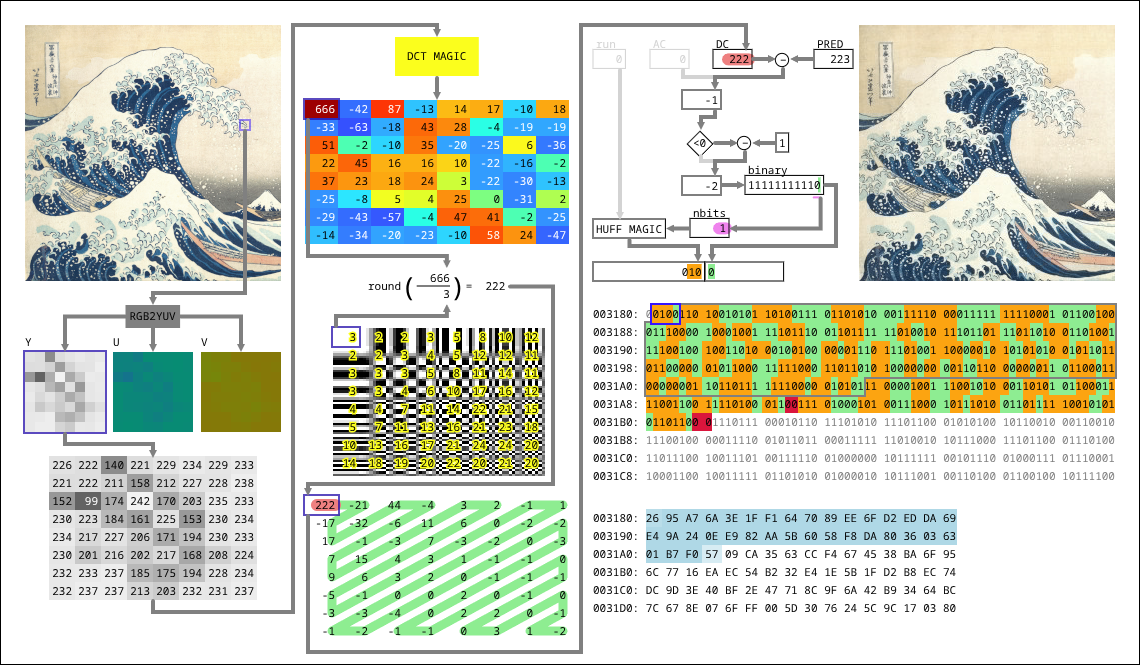

Here’s a quick visual overview of most steps of encoding a JPEG file:

This doesn’t explain much nor does it make it any easier to understand the encoding of a JPEG file, but pay attention to the bits colored in orange/green in the center right of the image.

Each orange/green pair is a Huffman code followed by a DCT coefficient. Huffman codes are variable-length codes, meaning that they are encoded with a variable number of bits. For example, we can see the codes:

Huffman code (orange)	DCT coefficient (green)	Total number of bits
010	0	4
11010	01010	10
11010	10001	10
111000	101100	12
100	011	6
…	…	…

Each Huffman code specifes two values:

• How many DCT coefficient to skip in the zig-zag (not important right now);
• How many bits the DCT coefficient immediately following it will have.

Also note a special Huffman code (colored in red) which specifies an End of Block (EOB), and does not specify any DCT coefficient.

Huffman code (red)	DCT coefficient (green)	Total number of bits
00	-	2

ASCII

A plain-text ASCII file is just a long sequence of characters.

ASCII defines the binary encoding for 95 printable characters (and 33 control characters), and that’s it.

ASCII codes are actually 7-bit, but on a plain-text file, they are made up of 8-bit bytes, with the most significant bit always being 0:

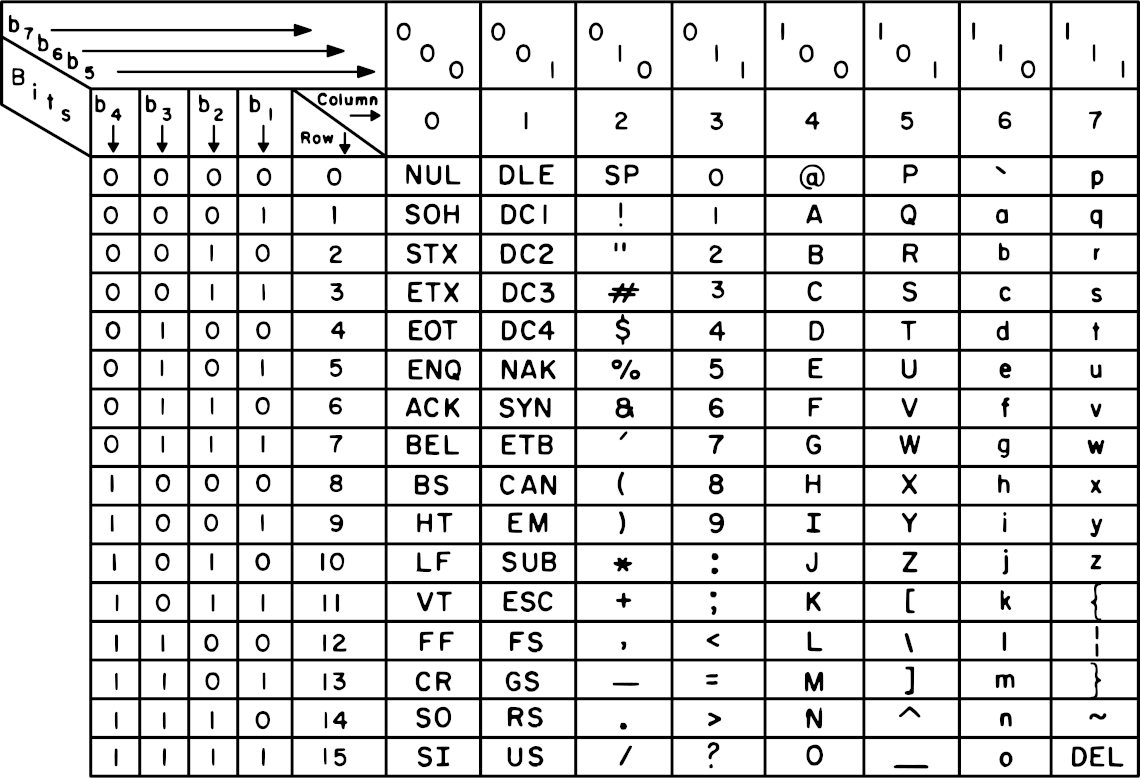

ASCII code in binary	Meaning
00000000	The NUL control character
00001010	The new line control character
00100000	A white space
00100011	The number sign # (no, this is not a hashtag)
00110111	The number 7
01000001	The uppercase letter A
01100001	The lowercase letter a
01111110	The ~ character
01111111	The DEL control character

Tweaking the JPEG Huffman tables

At the heart of ascii.jpeg is the generation of carefully-crafted Huffman tables so that each Huffman/DCT pair maps perfectly (or almost perfectly) into the 8-bit ASCII binary codes.

We can safely ignore most ASCII control codes, except for 00001010 (new line), so we are left with having to support codes from 00100000 to 01111110.

There are two properties of this subset of the 8-bit ASCII binary codes that help us generate the tables we want:

• all codes start with a bit 0;
• we will never encounter seven 1 bits in a row.

Below you will find the description of each Huffman table currently supported by ascii.jpeg.

Name	Bit sequences	Bits skipped	Bits read	Zero-run value range	DCT value range	Notes
[1] skip	0xxxxxxx	8	0	-	-	Entirely skips an 8-bit byte. Acts as an EOB for AC coefficients.
[1] 1 bit	0xxxxxxV	7	1	-	±1
[1] 2 bits	0xxxxxVV	6	2	-	±2..3
[1] 3 bits	0xxxxVVV	5	3	-	±4..7
[1] 4 bits	0xxxVVVV	4	4	-	±8..15
[1] 5 bits	0xxVVVVV	3	5	-	±16..31
[1] 6 bits	0xVVVVVV	2	6	-	±32..63
[1] 7 bits	0VVVVVVV	1	7	-	±64..127
[1] 1-6 bits	00VVVVVV 010VVVVV 0110VVVV 01110VVV 011110VV 0111110V 0111111V	variable	variable	-	±32..63 ±16..31 ±8..15 ±4..7 ±2..3 ±1 ±1	Gives a wider range of DCT coefficient values.
[1] run + 1 bit	0xxxxxxV	7	1	0..15	±1
[1] run + 2 bits	0xxxxxVV	6	2	0..14	±2..3
[1] run + 3 bits	0xxxxVVV	5	3	0..6	±4..7
[1] run + 4 bits	0xxxVVVV	4	4	0..2	±8..15
[1] word blocks	0000 0001 0010 0011xxxx 0100xxxx 0101xxxx 0110xxxx 0111xxxx	4	0 or 4	-	±8..15	Control characters, white spaces, and punctuation act as EOB for AC coefficients. WARNING: variable number of bits!
[1] line blocks	0000 0001 0010xxxx 0011xxxx 0100xxxx 0101xxxx 0110xxxx 0111xxxx	4	0 or 4	-	±8..15	Control characters act as EOB for AC coefficients. WARNING: variable number of bits!
[2] skip 8 + 8 bits	0xxxxxxxVVVVVVVV	8	8	-	±128..255	Uses 2 bytes.
[2] skip 8 + 8 bits (lines)	0xxxxxxxVVVVVVVV	8	8	-	±128..255	Uses 2 bytes. The newline character acts as EOB for AC coefficients.
[2] skip 8 + 8 bits (words)	0xxxxxxxVVVVVVVV	8	8	-	±128..255	Uses 2 bytes. The space character acts as EOB for AC coefficients.

The DCT coefficient values for each Huffman table and ASCII binary code can be found here: https://jpeg.ffglitch.org/ascii/dht.html

Quick link to the live demo (again): https://jpeg.ffglitch.org/ascii/

Quick link to the github repository (again): https://github.com/ramiropolla/ascii-jpeg

Thanks to:

I would like to thank Rosa Menkman for the quick chat about JPEG we had last year at fu:bar, when she told me about her project involving ASCII in JPEG using the DCT. This served as an inspiration to having ASCII in JPEG using the DHT.

I would also like to thank Jonathan Berger for inviting me to present something at the reinauguration of the Poetic Computation Club at the Overflow Gallery in Liège. This helped me focus my efforts into finishing this side quest.
